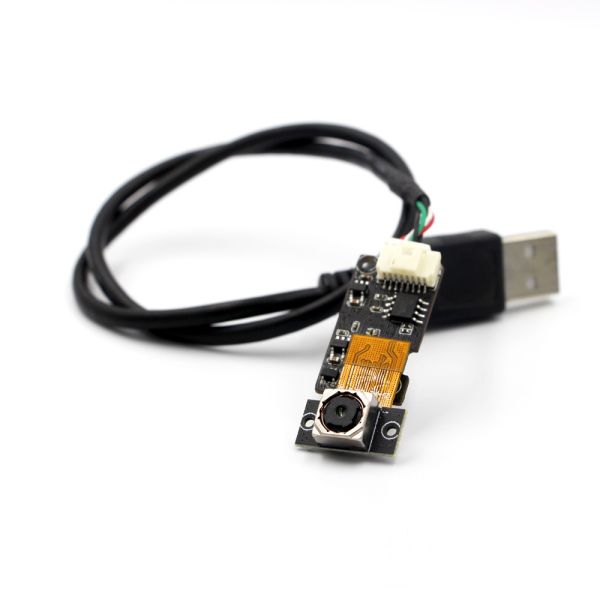

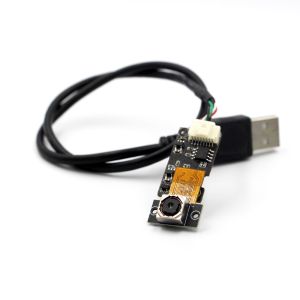

OEM High Quality 4K SDK CMOS IMX179 8MP OTG UVC Auto Focus Face Recognition Small USB PCB Camera Module with Microphone
Product Description
Full HD Camera Module
- The Sony IMX179 is a 5.7 mm (1/3.2") diagonal 8.8 MP CMOS image sensor with a square pixel array. The IMX179 HD USB camera module uses an advanced back-illuminated (BSI) pixel structure to significantly improve low-light imaging performance while supporting high dynamic range (HDR) shooting for detailed and realistic images. The chip is equipped with an electronic shutter with variable charge storage time, making it ideal for mobile phones and tablets.
Mini Camera Module
- IMX179 – 8 MP autofocus USB camera module with Sony IMX179 color sensor. The sensor module uses a 1/3.2" optical format with a pixel size of 1.4 μm x 1.4 μm, providing 8 MP images with a resolution of 3264 x 2448. The sensor compiles images by scanning horizontally (or downwards). The camera module uses a USB UVC interface and is compatible with Windows, Linux, and Apple systems.
IMX179 4K Camera Module Functions and Features
1)Sensor type: 1/3.2-inch back-illuminated (BSI) CMOS sensor for improved low-light performance.
2)Effective pixels: Approximately 8 million pixels (3264 × 2448 resolution).
3)Pixel size: 1.4 µm large pixel for enhanced light sensitivity.
4)High dynamic range (HDR): Supports multi-frame synthesis or on-chip HDR
5)Low-light performance: Back-illuminated technology reduces noise
6)Frame rate:
- Up to 30fps at full resolution (3264 × 2448).
- Supports 720p@60fps high-speed shooting.
7)On-chip ISP: Built-in auto exposure (AE), auto white balance (AWB), auto focus (AF) control.
8)Noise reduction algorithm: Supports 2D/3D digital noise reduction (DNR).
9)Image adjustment: Programmable adjustment of saturation, sharpness, contrast and other parameters.
10)Package size: Compact design, suitable for mobile devices
CMOS Camera Module Applications
Smartphones, robots, Internet of Things, security, monitoring, access control, artificial intelligence, high-speed scanners, machine vision, industrial automation, computer vision, educational equipment, testing equipment, face recognition, automotive electronics, etc.
Specifications:4K small camera module
| Module No. | HZ-5259-IMX179 S1.0 |
| Module Size | 30*30mm |
| Object distance | 15CM-100CM |
| Audio | Yes |
| Interface | USB2.0 |
| Voltage | DC5V |
| Operating system request | WinXP, VISTA, Win7, Win8, Win10, Linux or OS with UVC driver |
| Package | Anti-electrostatic tray |
| Sensor No. | IMX179 |
| Sersor Type | 1/4” |
| Active Array Size | 3264*2488 |
| Sensitivity | 600mV/(Lux·sec) |
| Pixel Size | 1.4μm*1.4μm |
| Maximum Image Transfer Rate | 1080p@30fps
2592*1944@15fps |
| Dynamic Range | 68DB |
| Lens Type | 2G2P |
| Mount | M12*P0.5mm |
| IR Filter | 650±10nm |
| GC/EC/Whiter balance | Auto |
| Output Formats | YUY2/MJPG |
| Application | Education, Medical, Video meeting |
Product Tags:
|
|
OEM 8MP IMX179 Full HD Camera Module 4K USB CMOS For Document Scanning Camera Images
|
